VSXLX505

$3,299.00
  • VSXLX505
VSXLX505 VSXLX505 VSXLX505

VSXLX505

$3,299.00
Enquire

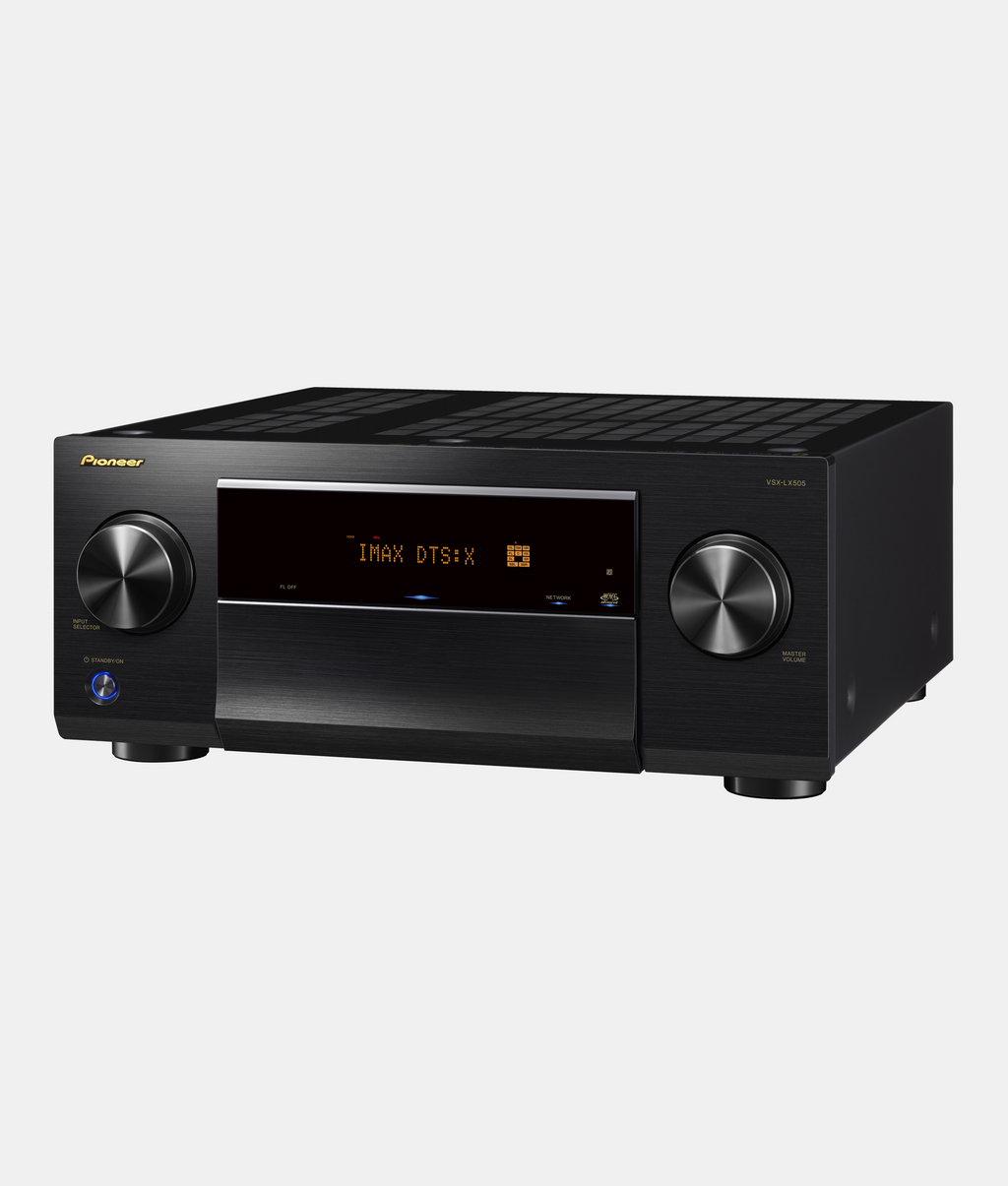

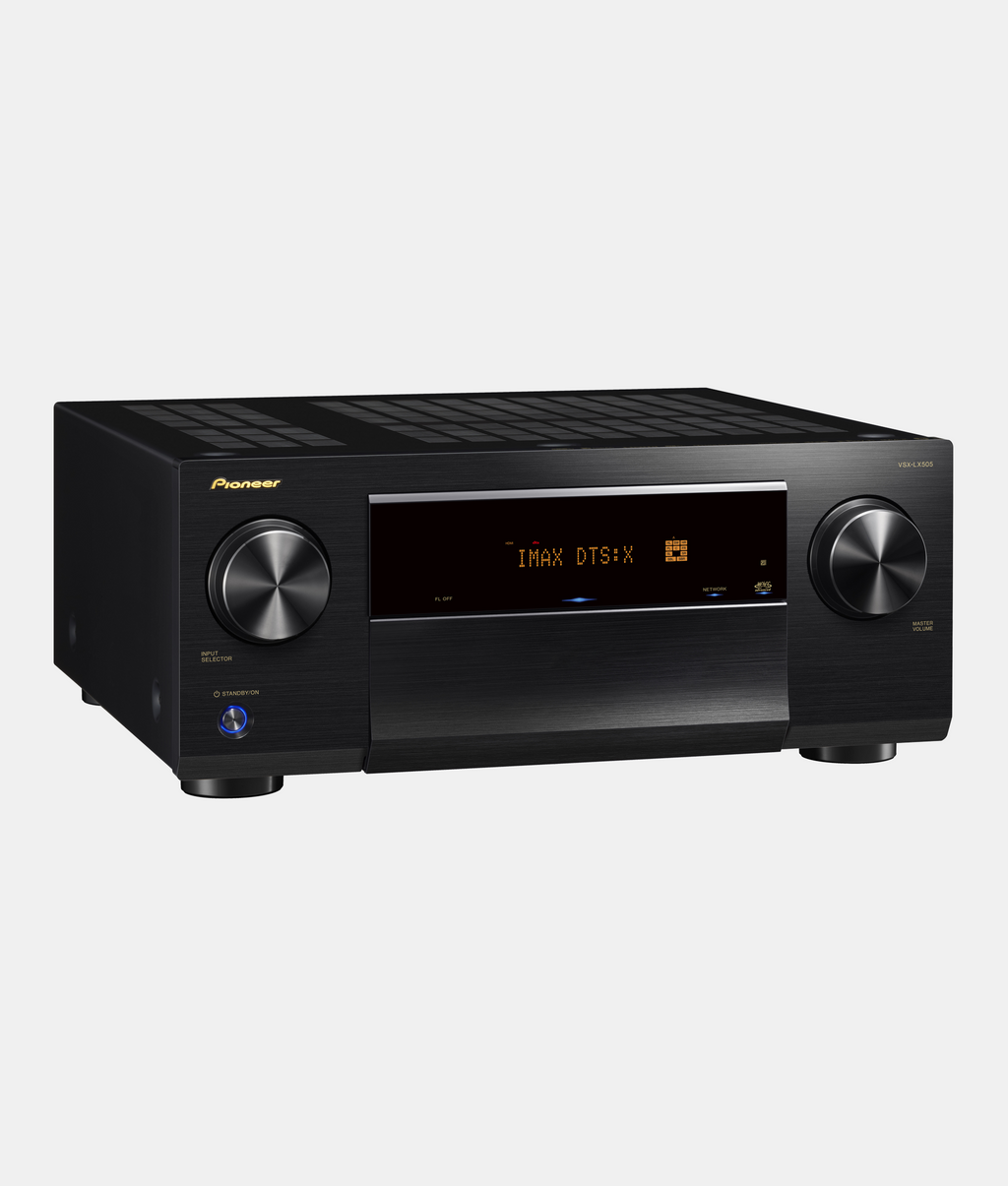

9.2-Channel Network AV Receiver

The VSXLX505 creates the soundscape of IMAX® Enhanced and Dolby Atmos®/DTS:X ideally calibrated with Advanced MCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer without additional surround speakers. Enjoy spectacles from next-gen video/gaming standards with support for HDMI 2.1*1 with 8K, VRR, ALLM, QFT pass-through, or stream songs across the house with Multi Zone Music, SONOS system, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2. Don’t forget it also features Powered Zone 2/Zone 3 Audio, 11.2/5.6/2.8 MHz DSD playback with PCM conversion, 2 HDMI outputs and Roon Tested certification. Finally, it works with Alexa or OK Google for voice control.

  • Dirac Live Room Correction
    State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS* application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience. Now, you will get a more accurate measurement of the positions of your Surround Sound system to be more precise and balanced to provide a better result with increased the upper limit of delay time from 20 milliseconds to 50 milliseconds.

    *Device must be connected to the internet and the same network as your AVR.
    HDMI® 2.1 with 8K
    HDMI® 2.1 is the most recent update of the HDMI® spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
    ULTIMATE 4K GAMING EXPERIENCE
    4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. This receiver supports higher performance from streaming devices like the latest Apple TV.
    IMAX® Enhanced MODE
    IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
    Streaming Music Services and Faster Wifi
    Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, or TuneIn streaming services.
    Bi-directional Bluetooth® Wireless Technology
    This AVR can send and receive audio via Bluetooth wireless technology. Now, the Bluetooth connectivity between your streaming device and Pioneer AV Receiver is even better so you can easily connect to your device and control it wirelessly with ease. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™️, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
    BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL
    This AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**
    *A third-party AI device is required for voice commands - sold separately
    ***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
    Works with Sonos Certified
    This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*.
    *Sonos Port required and sold separately.
    MCACC Auto Room Tuning featuring Auto Phase Control Plus
    MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus* makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
    Roon-Tested
    Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.
    Ready for DTS Play-Fi® multi-room audio
    DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
  • Amplification
    Channels
    9.2
    With External Amplifier: 11.2
    Power Output per Channel
    • 2-Channel Driven:
      120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
    • 1-Channel Driven:
      230 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
    Audio Processing
    DTS Compatibility
    DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
    Dolby Compatibility
    Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD
    Auro 3D Support
    No
    Upmixing Technology
    Dolby Surround, Dolby Atmos Height Virtualization Technology
    DAC
    192 kHz / 24-Bit
    Video
    HDR Compatibility
    HDR10+, Hybrid Log Gamma
    Upscaling
    1080p to 8K UHD
    GUI
    Yes
    Connectivity
    Rear A/V Inputs
    • 6 x HDMI 2.1
    • 1 x USB Type-A
    • 1 x Digital Coaxial
    • 1 x Optical TOSLINK
    • 1 x 3RCA Component
    • 2 x RCA Composite
    • 4 x Stereo RCA
    • 1 x Stereo RCA (Phono) with Ground Screw
    Rear A/V Outputs
    • 1 x HDMI
    • 1 x HDMI Zone 2
    • 1 x Stereo RCA Zone 2 / Zone B Line-Out
    • 1 x Stereo RCA Zone 3 Line-Out
    • 1 x 9-Channel RCA Pre-Out
    • 2 x RCA Subwoofer Pre-Out
    Front I/O
    • 1 x HDMI Aux Input
    • 1 x 1/8" / 3.5 mm Setup Mic Input
    • 1 x 1/4" / 6.35 mm Headphone Output
    • 1 x USB Type-A Input
    Other Rear I/O
    • 1 x RJ45 (Ethernet) Input/Output
    • 1 x FM Coaxial F-Type Input
    • 1 x AM Block Input
    • 1 x DE-9 (RS-232C) Input
    • 1 x 1/8" / 3.5 mm (IR) Input
    • 1 x 1/8" / 3.5 mm (IR) Output
    • 1 x 1/8" / 3.5 mm (12 V Trigger) Input
    • 1/8" / 3.5 mm (12 V Trigger) Output
    Speaker I/O
    11 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround)
    HDCP Support
    Version 2.3
    HDMI Compression Modes
    Not Specified by Manufacturer
    Audio Return Channel (ARC)
    ARC, eARC
    HDMI CEC
    Yes
    Media Card Slot
    None
    Wireless Connectivity
    Wi-Fi
    Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
    Supported Audio Codecs
    AAC, SBC, aptX, aptX HD
    Wireless Audio Protocols
    AirPlay 2, Chromecast built-in, DTS Play-Fi
    Control
    External Control Support
    Android/iOS Control App
    Virtual Assistant
    Works with Alexa, Works with Google Assistant
    Tuner Section
    Tuner Type
    AM, FM
    Number of Tuner Presets
    40 Stations
    Power
    AC Input Power
    120 VAC, 60 Hz
    Power Consumption
    Active: 850 W
    Standby: 0.1 W
    Physical
    Dimensions (W x H x D)
    17.1 x 7.3 x 15.2" / 435.0 x 185.0 x 386.0 mm
    Weight
    28.7 lb / 13 kg
