9″ WIRELESS AV RECEIVER
• 9” WSVGA Capacitive “Floating” Style Touch Screen
• Apple CarPlay™ (Wireless or Wired Connection) Including “Split Screen” Viewing Option
• Android Auto™ (Wireless or Wired Connection)
• Direct Launch Key (CarPlay & Android Auto)
• iDataLink Maestro Compatible
• Bluetooth (Dual Phone)
• Reverse Camera Input
• WebLink® Cast for Smartphone Mirroring (iOS and Android Devices)
- Features
- Specifications
- FAQ
The Pioneer DMHZF7650BT provides amazing features and quality without breaking the budget including a stunning 9″ WSVGA (1,024 x 600 pixel) capacitive screen, a sleek flat design, capacitive touch buttons and including our new “Direct” key to quickly access the Apple CarPlay or Android Auto GUI.
You have the ability to mount the unit in a wide selection of positions to ensure the perfect look for your vehicle thanks to our “Floating” screen design. Also supporting our “Light and Dark” GUI options and new high proximity panel construction, helps to ensure not just the best picture quality but also a wide viewing angle is achieved. The new Pioneer GUI also supports customizable shortcut keys allowing quick access to key functions of the unit.
It’s not just about looks either! With professional engineering, we closely examined the key audio components to ensure premium sound quality was achieved.
Supporting a wide selection of entertainment and information services including:
- Apple CarPlay™ (wireless or cable connection) including “Split screen” viewing option
- Android Auto™ (wireless or cable connection)
- iDataLink Maestro compatible(*)
- WebLink® 3.0
- WebLink® Cast for compatible iOS and Android™ Handsets
- Spotify(#)
- Full HD video playback from USB***
- Bluetooth (Dual Phone##)
- AM/FM Tuner and more!
With this much choice you will never want to leave your car!
(*) Only available in Australia & New Zealand. iDataLink Maestro interface module required. Sold separately.
(**) Access to the Pioneer PxLink app and mobile data required.
(***) Playback capability for various content may change.
(#) Spotify controlled via Apple CarPlay™ or Android Auto™.
(##) Connection conditions apply
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
9″ WSVGA RESOLUTION DISPLAY
The 9″ capacitive touch display supports a WSVGA resolution (1,024 x 600 pixel). This provides an expansive viewing experience that makes map reading easier, clarity of Apple CarPlay, Android Auto™ or Pioneer user interfaces clearer and also enables powerful and impressive video & still images when compared to traditional WVGA screens.
PIONEER PREMIUM QUALITY SOUND
Pioneer continues it’s ongoing commitment to finding new design methods, part sourcing and industry leading technologies to ensure an in-car experience like no other. From premium capacitors and a full-custom high-performance 48-bit dual-core DSP to our Advanced Sound Retriever and time alignment technology, we are sure you will be impressed!
APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)
The best iPhone® experience on four wheels; Apple CarPlay™ is a smarter, safer way to use your iPhone® while you drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. You can even connect wirelessly to stay focused on the road.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)
Enjoy seamless connectivity and control of your compatible Android™ smartphone in the car. Android Auto is a simpler, safer way to use your phone in the car. Get all your favourite maps, media, and messaging apps on your car display.
To use Android Auto on your car display, you’ll need an Android phone running Android 8 or higher, an active data plan, and the Android Auto app.
To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.
Some features and devices may not be available in all countries. Subject to availability.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

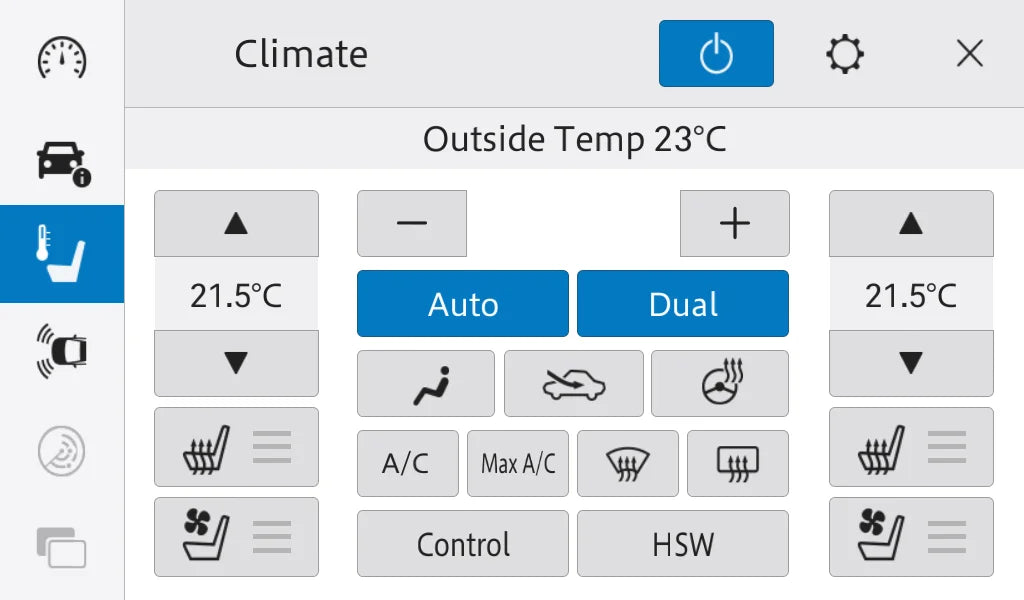

IDATALINK MAESTRO COMPATIBLE
Keep your factory features and expand your level of in-vehicle connectivity with Pioneer receivers and iDatalink Maestro RR. When your DMH-ZF8550BT receiver is installed in a compatible vehicle using the iDatalink Maestro RR interface# (sold separately), you’ll be able to enjoy the performance and features of the DMH-ZF8550BT receiver plus touchscreen control over key factory audio features.
The DMH-ZF8550BT supports factory functions via the iDatalink Maestro RR interface including, Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Secondary Display Support, Visual parking assistance, HVAC 1 or 2 compatible, Multi-camera control*……and more!
*Images will vary dependant on AV receiver, camera system and vehicle.
# iDataLink Maestro interface sold separately.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
SPLIT SCREEN FOR APPLE CARPLAY
You can now display Apple CarPlay and the receiver’s menu at the same time on one screen. This function is useful such as when you want to operate the music (i.e. Radio or USB) while looking at the map screen.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
Apple CarPlay is a trademark of Apple Inc. registered in the U.S. and other countries.
Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
IMPROVED BLUETOOTH AND WI-FI CONNECTIVITY
Improved Bluetooth and Wi-Fi connectivity have been achieved to provide users with clearer hands-free calling, improved sound quality when streaming music with Apple CarPlay or Android Auto as well as ensuring a more stable connection.

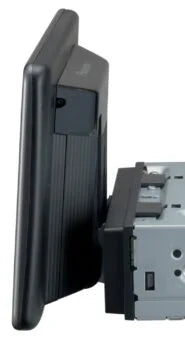

“FLOATING/SEPARABLE” DISPLAY
The design of the DMH
-ZF7650BT structure is unique, combining a universal 1-
DIN size chassis with a large 9-inch display that can be configured for installation as a floating mount type applicable to most vehicles1. When installed as a floating mount type, the screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle’s dash*.
* In-dash type flush mount capability varies by vehicle and/or third-party installation kit availability, sold separately. Custom mount not provided. Limited cable length available.
WEBLINK® & WEBLINK® CAST
WebLink® 3.0 enables a compatible smartphone with the WebLink Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen4. WebLink compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more5. WebLink enables this Pioneer receiver to deliver a modern infotainment system.
Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.
For more information please follow the link: WebLink
The compatible smartphone must be connected to a compatible Pioneer receiver via USB and Bluetooth simultaneously to enable full WebLink functionality.
Certain apps may restrict some functions, such as video and music playback.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
WebLink® is a registered trademarks of Abalta Technologies, Inc. WebLink® Cast is a trademark of Abalta Technologies, Inc.
Yelp, Yelp logo and related marks are registered trademarks for Yelp.
Waze® is a registered trademark of Google LLC.
WEBLINK® BROWSER
Keeping connected while away is of growing importance. Now, with WebLink Browser you can access many of your favourite websites, login to your streaming services and playback video as well as being able to bookmark your favourite sites.
#Only available on compatible Android handsets. Not all streaming services are compatible.

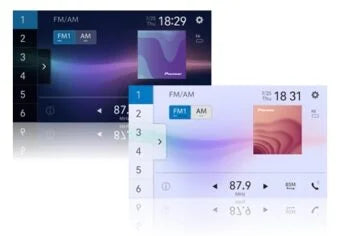

SELECTABLE VIEWING MODES
Light / Dark mode for enhanced visibility – By changing the colours of the UI background and text, visibility and legibility can be optimised based on the ambient light conditions, such as day or night. Light mode is intended to reduce the effect of ambient light reflections in bright conditions (daytime), while Dark mode may help to reduce screen glare in dark conditions (night time). Light / Dark mode can be selected manually or set to automatically correspond to the time of day and/or illumination settings of the vehicle*.
*Requires connection to a compatible vehicle illumination circuit of the vehicle during installation. Third-party installation adapter or interface may be required, sold separately.
PXLINK SMARTPHONE APP
Using the new Pioneer “PxLink” smartphone app users can customise the display on their compatible multimedia receiver including adding your own background image, customise their shortcut keys and perform OTA (Over The Air) firmware updates*. Pioneer is letting you be in control like never before!
Available for free download from the Google Play or App store.
*Access to the Pioneer PxLink app and mobile data required.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.
2 x PHONE FULL-TIME BLUETOOTH CONNECTION*
You can now simultaneously connect and control 2 x smartphones via Bluetooth. The auto connection function automatically pairs the two phone so incoming calls can be picked up by either of the paired phones. No more having to pair and un-pair devices. Bluetooth Audio Streaming (A2DP, AVRCP 1.6) makes it possible to display information embedded in songs.
* Connection conditions apply.
REVERSE CAMERA INPUT
Reversing can be a stressful experience. The reverse camera input allow you to connect a reverse camera for improved safety (visibility of hazards) and peace of mind. Particularly helpful when parking your vehicle or towing.
Display
Screen Size 9" Resolution WSVGA (1,024 x 600) Touchscreen Capacitive LED Backlight Yes Colour Customisation 5 Display & 112 Key Colours Bluetooth
Built-in Bluetooth Yes Ver. 5.2 Dual Phone Connection Yes Hands-Free Profile (HFP) Yes Audio/Video Remote Control Profile (AVRCP) Yes Advanced Audio Distribution Profile (A2DP) Yes Serial Port Profile (SPP) Yes Smartphone Pairing Memory 5 Devices Tuner
AM/FM Tuner Yes DAB+ Tuner No Presets 18 FM, 6 AM Best Station Memory (BSM) Yes Local Seek Tuning Yes RDS Yes Smartphone Integration
Apple CarPlay™ Yes (Cable or Wireless) Inc Split Screen Function Android Auto™ Yes (Cable or Wireless)Inc Split Screen Function Alexa Built In No Smartphone App PxLink (iOS & Android) Spotify® Control Yes (via CarPlay / Android Auto) WebLink® Yes Ver. 3.0 Live Information No Siri® Eyes Free iPhone Only Web Browser Android Only Digital Media Playback
CD/CD-R/CD-RW Playback No DVD/DVD-R/RW/DVD-Video Playback No MP3 Audio Playback USB WMA Audio Playback USB AAC Audio Playback USB WAV Audio Playback USB FLAC Audio Playback USB MPEG-4 Video Playback USB DivX Video Playback No WMV Video Playback USB JPEG Photo Slideshow Viewer USB Full HD Video Playback USB Audio
Hi-Res Audio Certified No RCA Pre-outs 3 pair 2v (front/rear/subwoofer) Built-in Amplifier MOSFET 4 x 50W Auto EQ & Time Alignment (CD-MC20 required) No Specialized Audio Parts Yes D/A Converter 24-bit Crossover Network HPF/LPF 3-Way Audio Network Mode Yes Subwoofer Control Yes Advanced Sound Retriever Yes Manual Time Alignment Yes Equalizer 13 Band Graphic EQ Expandability
iDataLink Maestro Yes - Sold Separately Wi-Fi Connectivity Yes USB Single Rear Type-A AUX Rear (Audio/video) Reverse Camera Input Yes Parking Assist Guidelines Yes Wired Remote Input Yes (Learning) HDMI No Composite Video Output Yes General
Remote Control No Warranty 12 Month Chassis Size 1 DIN (156mm Depth) -
